1. Package: wood drum
2. Certificate: CE ROHS ETL UL CPR
3. Free samples
4. Provide test report
5. Stable quality, complete testing equipment

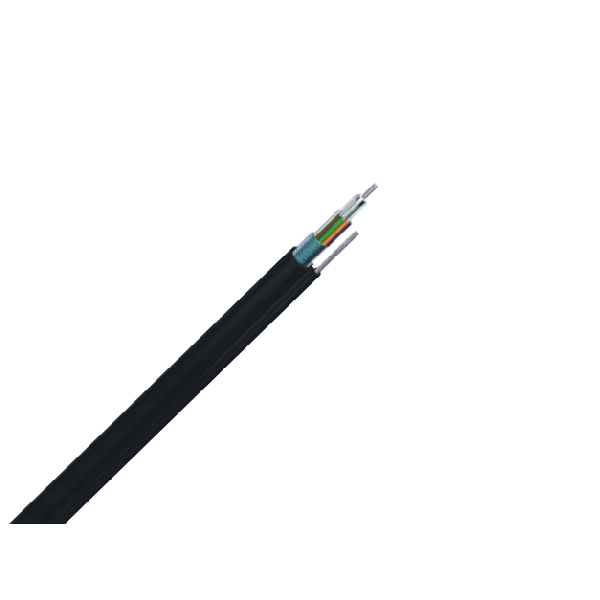

Optical cables are mainly used in the transmission of optical signals in telecommunications networks
| Transport/Storage Temp | Installation Temp | Operation Temp |
| -40℃~+70℃ | -30℃~+50℃ | -40℃~+70℃ |
| Fiber Count | 2~48 |
| Loose Tube | Colored Fiber In Pbt Loose Tube, Filled With Fiber Gel |
| Armor | Two Parallel Steel Wires |
| Waterproof Layer | Single Fine Steel Wires Round The Loose Tube |
| Corrugated Steel-Plastic Tape | Ensures Nice Moisture Proof And Side Pressure Resisting Capability Of Cable. |
| Messenger Wire | Single Steel Wire Or Stranded Steel Wire |
| Sheath | Polyethylene(PE) |
| Fiber Count | Cable Outer Dia (Mm) | Cable Weight (Kg/Km) | Min.Bending Radius(Mm) | Permissible Tensile Force（n） | Permissible Pressure Force（n/100mm） | |||
| Static | Dynamic | Short Term | Long Term | Short Term | Long Term | |||
| 2-12 | 9.3*16.7 | 161 | 10d | 20d | 6000 | 3000 | 1000 | 600 |
| 14-24 | 10.6*18.0 | 126 | 10d | 20d | 6000 | 3000 | 1000 | 600 |
| 26-36 | 11.5*18.9 | 245 | 10d | 20d | 6000 | 3000 | 1000 | 600 |
| 38-48 | 12.4*19.8 | 266 | 10d | 20d | 6000 | 3000 | 1000 | 600 |
| Note："d" Is Cable Diameter | ||||||||
