STANDARD SHIELD
1. Package: empty rolls, wooden and plastic trays, and pull -boxes.
2. Certificate: CE ROHS ETL UL CPR
3. Free samples
4. Provide test report
5. Stable quality, complete testing equipment

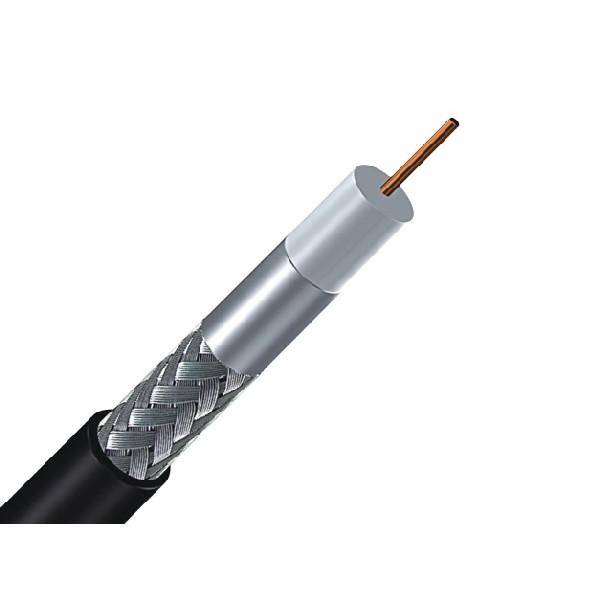

Basic Construction
|
|
|
STANDARD SHIELD |
|
CONDUCTOR |
MATERIAL |
BC/CCS |
|
Nom.Dia. |
20AWG |
|
|
DIELECTRIC |
MATERIAL |
Foam PE |
|
Nom.Dia. |
3.66mm |
|
|
SHIELD |
MATERIAL |
AL Foil+AL Braiding |
|
COVERAGE |
40%-95% |
|
|
JACKET |
MATERIAL |
PVC/PE |
|
Nom.Thick. |
0.80mm |
|
|
Nom.Dia. |
6.10mm |
Basic Characteristics
|
Nominal Impedance(ohm) |
75±3 |
||
|
Nominal Velocity of propagation(%) |
85 |
||
|
Nominal Capacitance(pf/m) |
85 |
||
|
Spark Test(VAC) |
2500 |
||
|
SRL(dB) |
20 |
20 |
|
|
Attenuation[68°F(20℃)] |
Frequency（MHz） |
Maximum(dB/100ft) |
Maximum(dB/100m) |
|
5 |
0.86 |
2.82 |
|
|
55 |
2.05 |
6.73 |
|
|
187 |
3.6 |
11.81 |
|
|
300 |
4.45 |
14.6 |
|
|
450 |
5.4 |
17.72 |
|
|
600 |
6.2 |
20.34 |
|
|
750 |
6.97 |
22.87 |
|
|
865 |
7.52 |
24.67 |
|
|
1000 |
8.12 |
26.64 |
|
