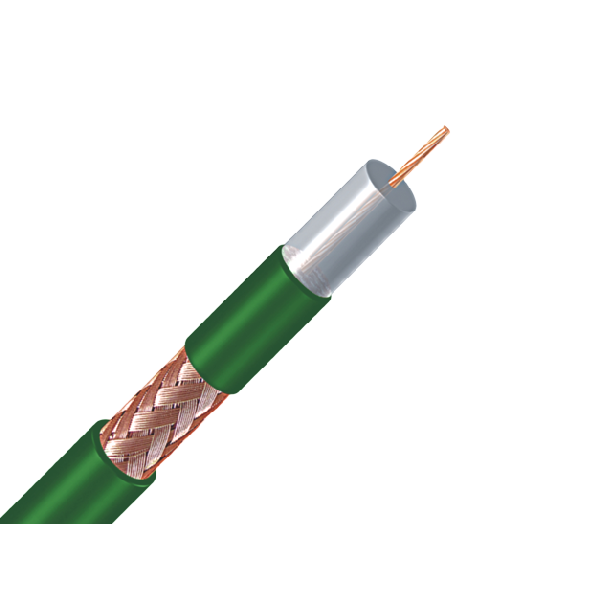

| KX8 | ||
| Conductor | Material | BC/TC |
| Nom.Dia. | 7×0.40±0.005mm | |
| Dielectric | Material | Solid PE |
| Nom.Dia. | 7.24±0.10mm | |
| Shield | Material | BC/CCA Braiding |
| Coverage | 95% | |
| Jacket | Material | PVC |
| Nom.Dia. | 10.30±0.10mm |
| Nominal Impedance(Ohm) | 75±3 | |
| Nominal Velocity Of Propagation(%) | 66 | |
| Nominal Capacitance(Pf/m) | 67.2 | |
|
Attenuation [68°f(20℃)] Maximum (Db/100m) |
Frequency(Mhz) | KX8 |
| 10 | 2.3 | |
| 50 | 4.3 | |
| 100 | 6.6 | |
| 200 | 9.5 | |
| 400 | 13.8 | |
| 700 | 19.0 | |
| 900 | 22.3 | |
| 1000 | 23.3 | |
